QCR Series.

Clock Recovery Instrument
The QCR Series Clock Recovery Instrument delivers high-performance clock extraction from high-speed data streams, ensuring clean and stable signals essential for advanced testing environments.
Engineered with a low-jitter architecture and precision phase-locking capabilities, the QCR Series provides a robust and scalable solution for validating and characterizing next-generation communication systems.

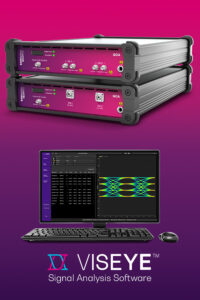

When paired with the QCA Series High-Speed Communication Analyzer, it forms a powerful test platform for comprehensive signal integrity analysis and system-level debugging.
ULTRA-LOW JITTER
High quality precision timebase with low jitter mode provides ultra-low jitter noise floor and PLL-based low frequency clock phase tracking.
ACCURATE PERFORMANCE
Comparable feature set and predictive value (correlation) as the prohibitively expensive R&D set-ups.
COMPACT DESIGN
Compact design enables high-density, high-channel count test solutions in a relatively small footprint.
SCALABLE
Designed to meet the requirements for high channel count validation and high-volume manufacturing and testing.
EASY OF INTEGRATION
Small footprint, remote control and API enable easy integration into probing and assembly equipment.
LOWER COST-OF-TEST
Improved test efficiency and test throughput can reduce the cost-of test and accelerate time-to-market.

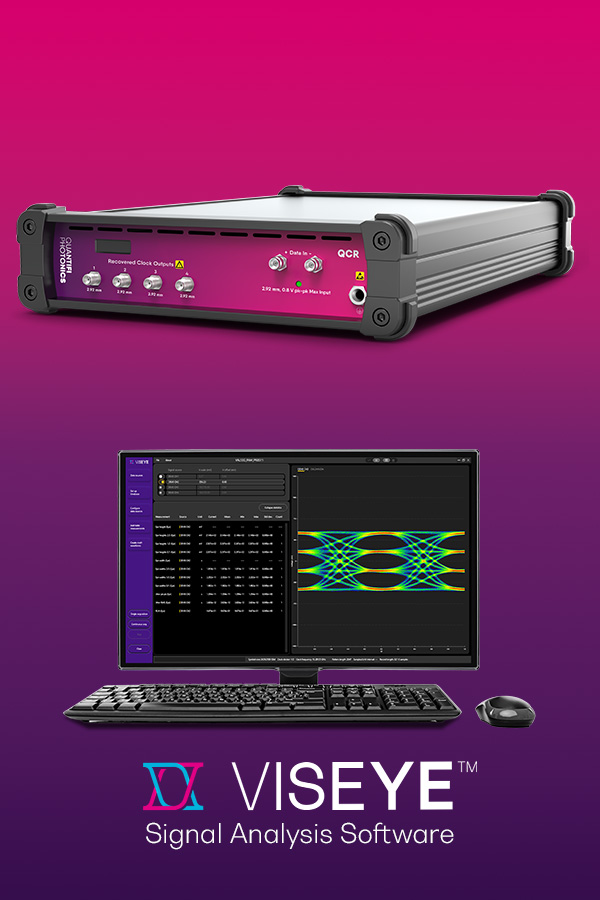

VISEYE™ SOFTWARE
With a modern, intuitive design, VISEYE makes it easy to control the QCR clock recovery instrument and QCA digital sampling oscilloscope from one software interface.
- Optical communication testing
- High-speed electrical interconnects
- Electrical high-speed IO characterization
- High-volume test of high-speed ICs
- Validation testing
