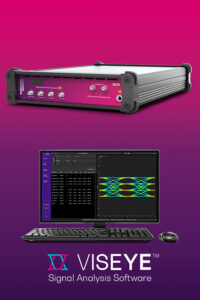

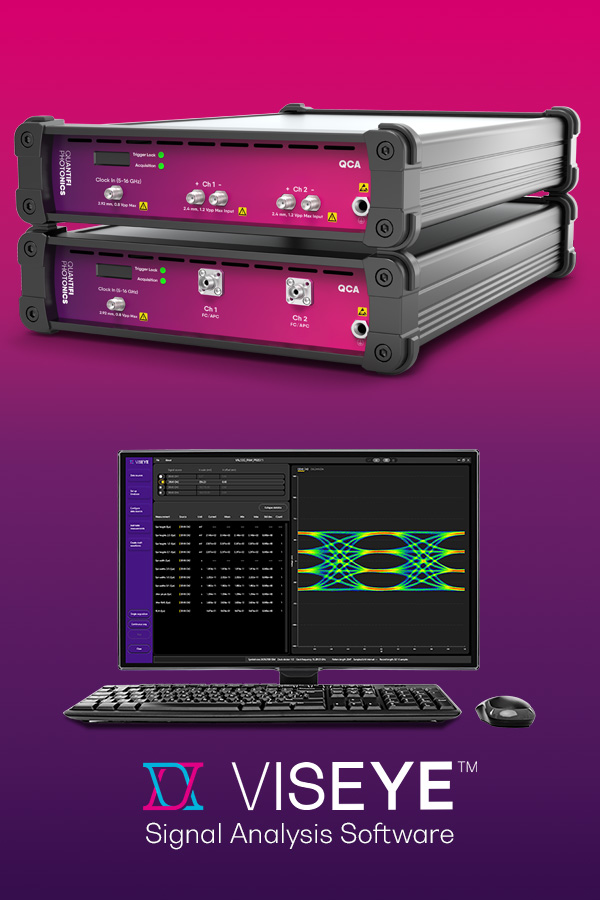

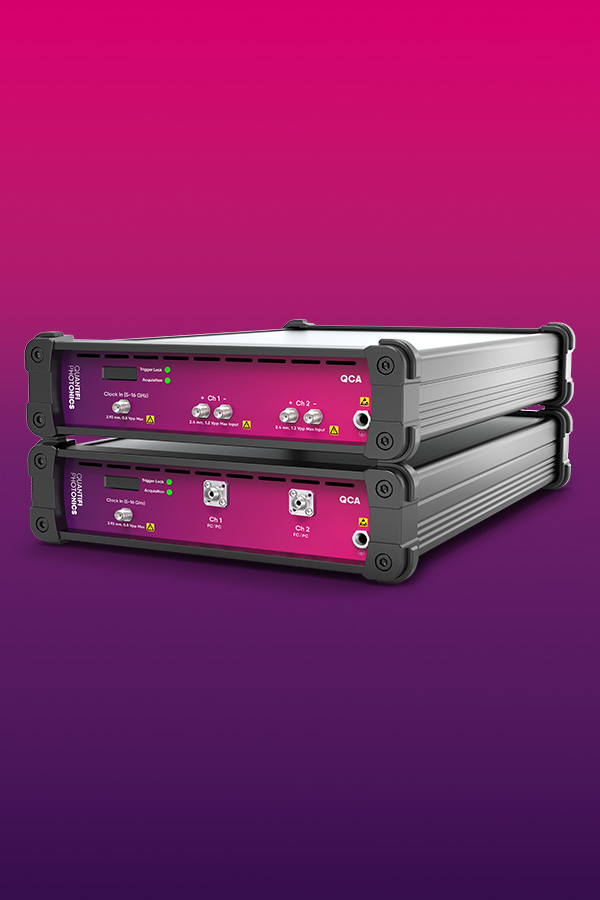

QCA High-Speed Communication Analyzer.
Digital Sampling Oscilloscope
The new QCA Series high-speed communication analyzer is a digital sampling oscilloscope (DSO) with high-quality precision timebase and low jitter mode designed to deliver a cost-effective, scalable and high-density test solution ultimately suited to address the requirements for the next generation of high-speed interconnects as well as high-density ASICs.
Its ultra-low jitter performance and unrivalled instrument density is ideally suited to perform high-precision measurements in parallel for optimized test throughput and reduced cost-of test in high-volume testing and manufacturing applications. The QCA Series can be easily integrated into existing assembly and alignment equipment used to manufacture next-generation interconnects.
COMPACT DESIGN
The QCA-1000 Series enables high-density, high-channel count, test solutions in a relatively small footprint.
SCALABLE
Designed to meet the requirements for high channel count validation and high-volume manufacturing and testing.
EASY TO INTEGRATE
Small footprint, remote control and API enable easy integration into probing and assembly equipment.
COST-OF-TEST
Improved test efficiency and test throughput can reduce the cost-of test and accelerate time-to-market.
ACCURATE PERFORMANCE
Comparable feature set and predictive value (correlation) as the prohibitively expensive R&D set-ups.

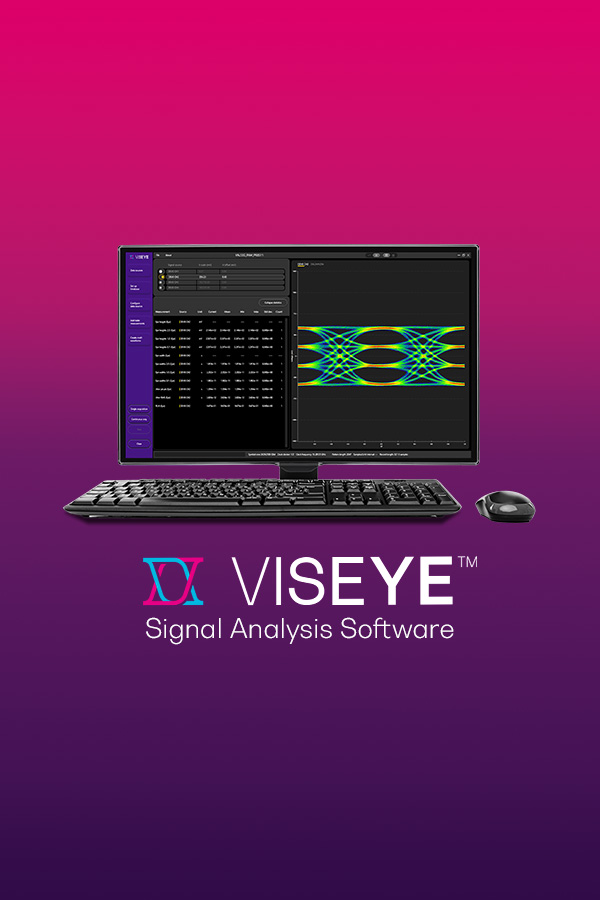

VISEYE™ ANALYSIS SOFTWARE
The newly designed visualization and analysis software has powerful analysis capabilities and is intuitive and easy-to-use.
- Electrical high-speed IO characterization
- High-volume test of high-speed ICs
- Validation testing
- Pre-production testing
- Jitter and eye diagram testing for:
- Switch ASICs
- GPUs/CPUs
- AI/ML processing ICs
- PAM4 DSPs
- Repeater/extender ICs
- Other high-speed ICs such as DACs, TIAs, and drivers
