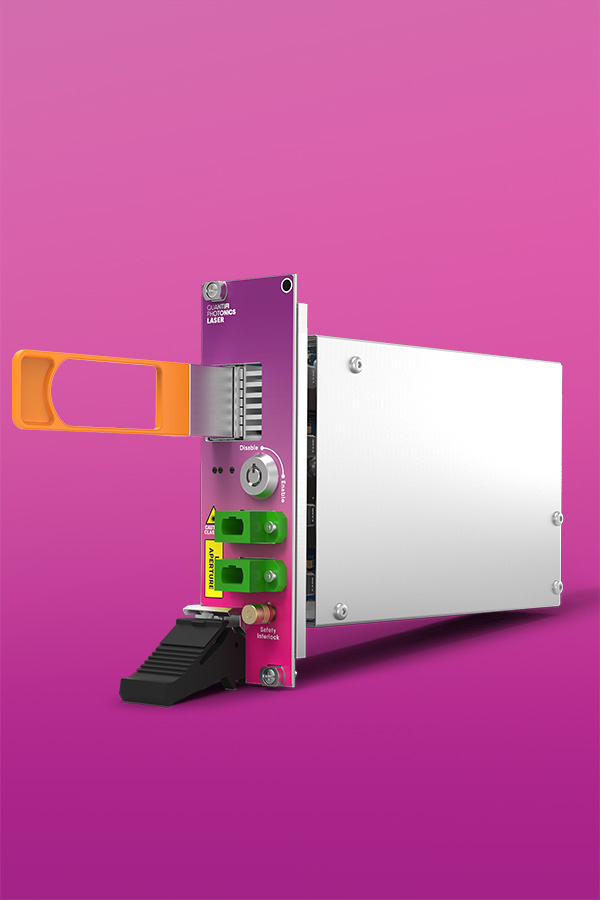

ELSFP External Laser Source.
ELSFP 1000 Series
The ELSFP 1000 Series is a high‑power, multi‑channel external laser source designed to deliver stable continuous‑wave optical output for scalable CPO and PIC testing.
It provides up to eight channels of stable CW power of up to 25 dBm per channel using the External Laser Small Form‑Factor Pluggable (ELSFP) standard to support realistic power distribution and simplify high‑channel‑count CPO and PIC test setups.
Multi‑Channel Output
8 channels of optical power with MPO connectors for easy fan-outs or high-density interconnects.
Stable Operating Wavelength
1311 nm operating wavelength with PM1300 fiber outputs for polarization stability in sensitive measurements.
Various Output Power Levels
Current models offer up to 25 dBm, 23 dBm, or 20 dBm optical output power per channel.
Compact PXIe Design
PXIe (2‑slot) form-factor provides a compact footprint for dense, rack‑friendly test systems.
ELSFP Standard Compliance
ELSFP-compliant and future-proof for new ELSFP modules up to Power Class 6 (30 W).
- Photonic IC design verification testing (DVT)
- Photonic IC high‑volume manufacturing
- ELSFP module testing
