Optical Spectrum Analyzer.
Available in MATRIQ and PXI platforms

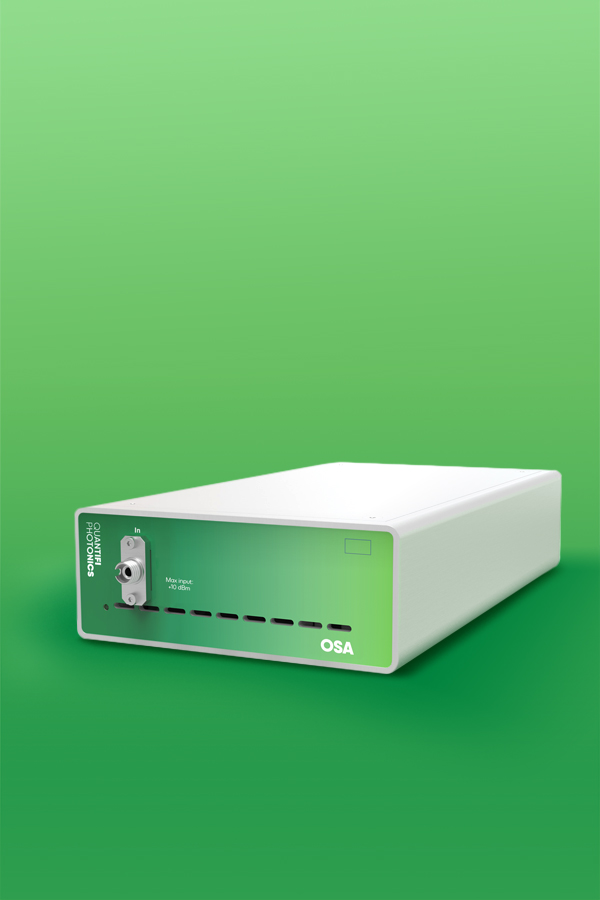

OSA 1000 Series
The OSA 1000 Series is a grating‑based optical spectrum analyzer for precise spectral analysis of optical sources, amplifiers, transceivers, and passive components.
The compact benchtop form factor supports efficient, high‑volume production test with stable, repeatable measurements.
Available in multiple wavelength ranges, each model addresses specific application requirements for cost‑effective, targeted performance.
Detailed optical specifications, wavelength coverage, and performance limits are provided in the OSA 1000 Series spec sheet.
Grating-based architecture
Accurate measurement of optical spectrum without artifacts: good dynamic range, high optical throughput, high spectral resolution and high wavelength accuracy.
Range of wavelengths
Choose the model that meet your requirements and pay for only the capabilities you need. OSA can also be customized to other customer specified wavelength range.
Fast sweeping speed
OSA has been designed with a fast scanning time optimized for production and manufacturing test.
Simple, intuitive operation with CohesionUI™
CohesionUI makes it simple to control the OSA from your PC or mobile device. Its cutting edge design offers a sleek modern interface, cross device compatibility, customizable views and remote network access.
- Power and wavelength measurements
- High-resolution spectral analysis on optical components
- WDM channel monitoring
- Optical Signal to Noise Ratio (OSNR) measurements
- Side-mode Suppression Ratio (SMSR) measurements
- Passive component spectral response characterization
- Data modulation analysis
- Modulator bias adjustments
- General purpose spectral analysis R&D labs
- Gain equalization
