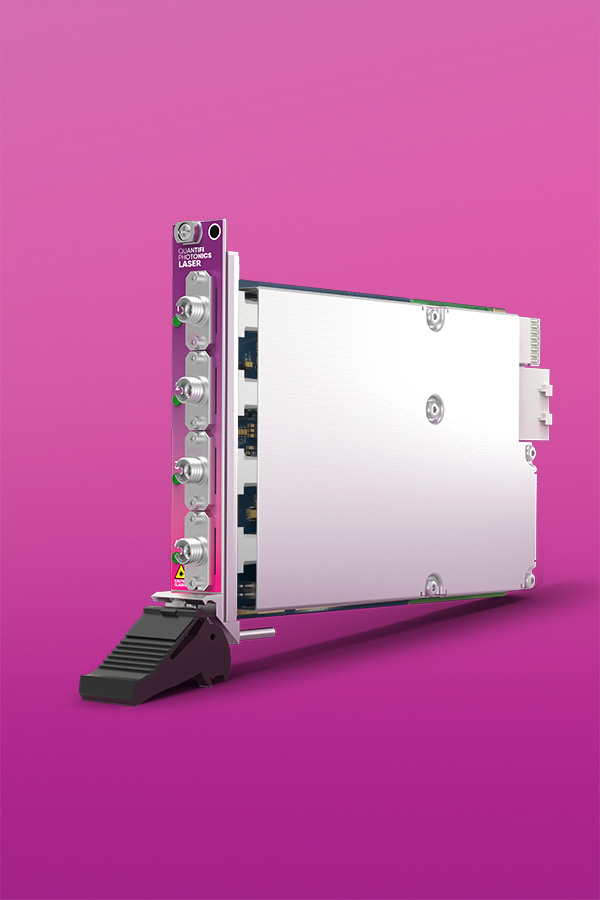

Fixed Wavelength CW Laser Source (FP).
Available in PXI and MATRIQ platforms
Laser 1100 Series
The Laser‑1102 is a continuous‑wave (CW) fixed‑wavelength laser source delivering high‑power 850 nm output into multimode fiber with stable, repeatable power performance.
Designed for straightforward integration in optical test setups, it provides a reliable short‑wavelength light source for consistent measurements in both laboratory and production environments.
Detailed optical performance specifications, operating conditions, and configuration limits are provided in the Laser‑1102 spec sheet.
Enhanced power uniformity
Smart calibration minimizes inter-channel power variance with enhanced power uniformity between channels.
Up to +10 dBm optical output power
High-power options provide as high as +10 dBm output power.
High power stability
Highly stable output power ensures accurate and consistent test and measurement results.
Multimode testing
Ideal for multimode datacom interconnect testing in the 850 nm wavelength operating window.
OM3 fiber
50 µm multimode OM3 fiber launch similar to most datacom 850 nm links.
4 lasers per single-slot module
Achieve high channel density with up to 68 channels in an 18-slot PXI chassis.
- Stable 850 nm laser source for testing multimode OM3 fiber links
- Datacom SR4, SR8 interconnect testing
- General purpose stable multimode fiber light source for datacom and physics
- 850 nm receiver responsivity testing
